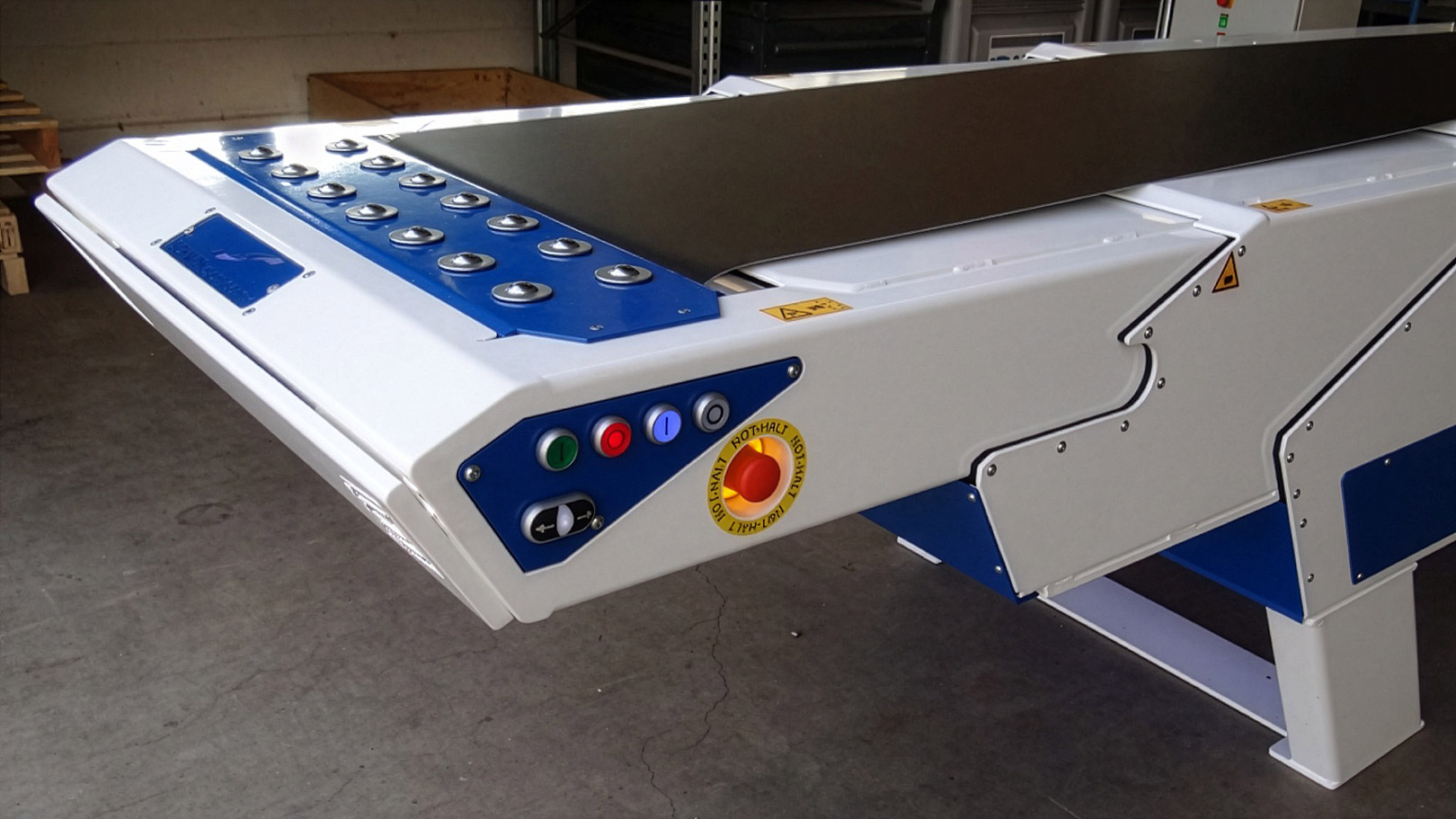

Telescopic conveyor CompactLoader
The economical and safe loading and unloading of goods and parcels in trucks, vans or swap bodies in distribution and transshipment centres is an important task in the optimisation of logistics planning.
Cost-effectiveness and flexibility
The advantages of using telescopic conveyors are obvious. In order to prevent work-related health impairments, manual work and thus physical stress are massively reduced. Due to the higher process automation, the loading and unloading performance and thus, of course, your throughput are also significantly increased.
The same telescope can be used at several gates. With the help of rail systems, it can be moved between different loading and unloading positions. It is also possible to adjust the inclination of the telescope using hydraulic height adjustment in order to optimally adjust the transfer point to the height of the loading compartment.
Options
- Light barriers at infeed or outfeed
- Hydraulic lifting and lowering
- Mobile movable on rail
- Control system connection to conveying equipment
- Adjustable conveying speed

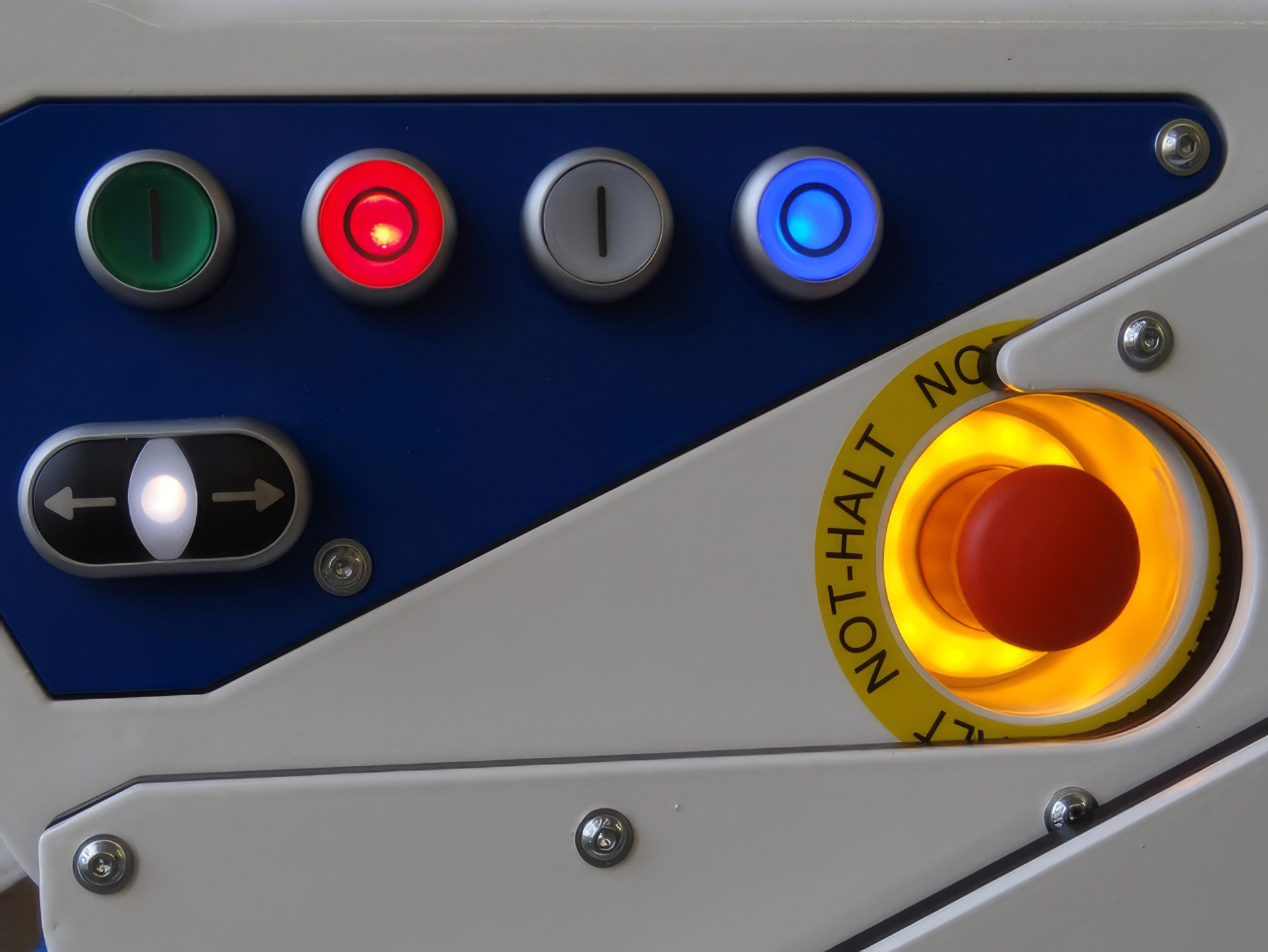

- Controls at the front and on the side
Technical data
| Nominal width | 600 / 800 / 1,000 mm |
| Basic length | 3,000–7,500 mm (3-stage) 5,000–7,500 mm (4-stage) |
| Extended length | 6,000–18,500 mm (3-stage) 14,300–22,800 mm (4-stage) |
| Conveying height | min. 800 mm (3-stage) min. 1,000 mm (4-stage) |
| Conveying speed | 0,5 m/s |
| Conveying direction | Loading and unloading |
| Load capacity | 50 kg/m |
| Accessories | Roller ball table / roller bed at the removal / feeding station, lighting in front element |
