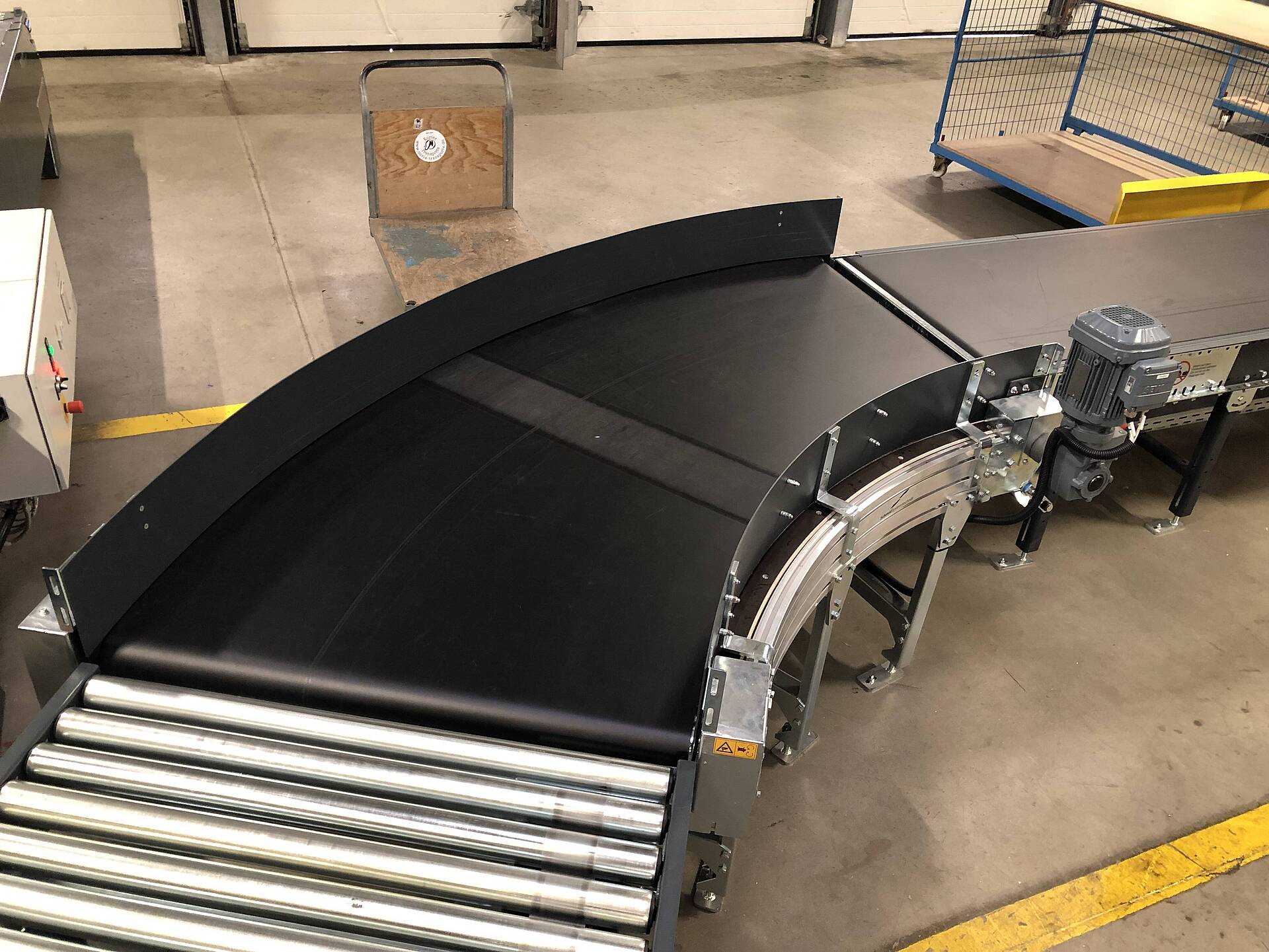

Belt curve

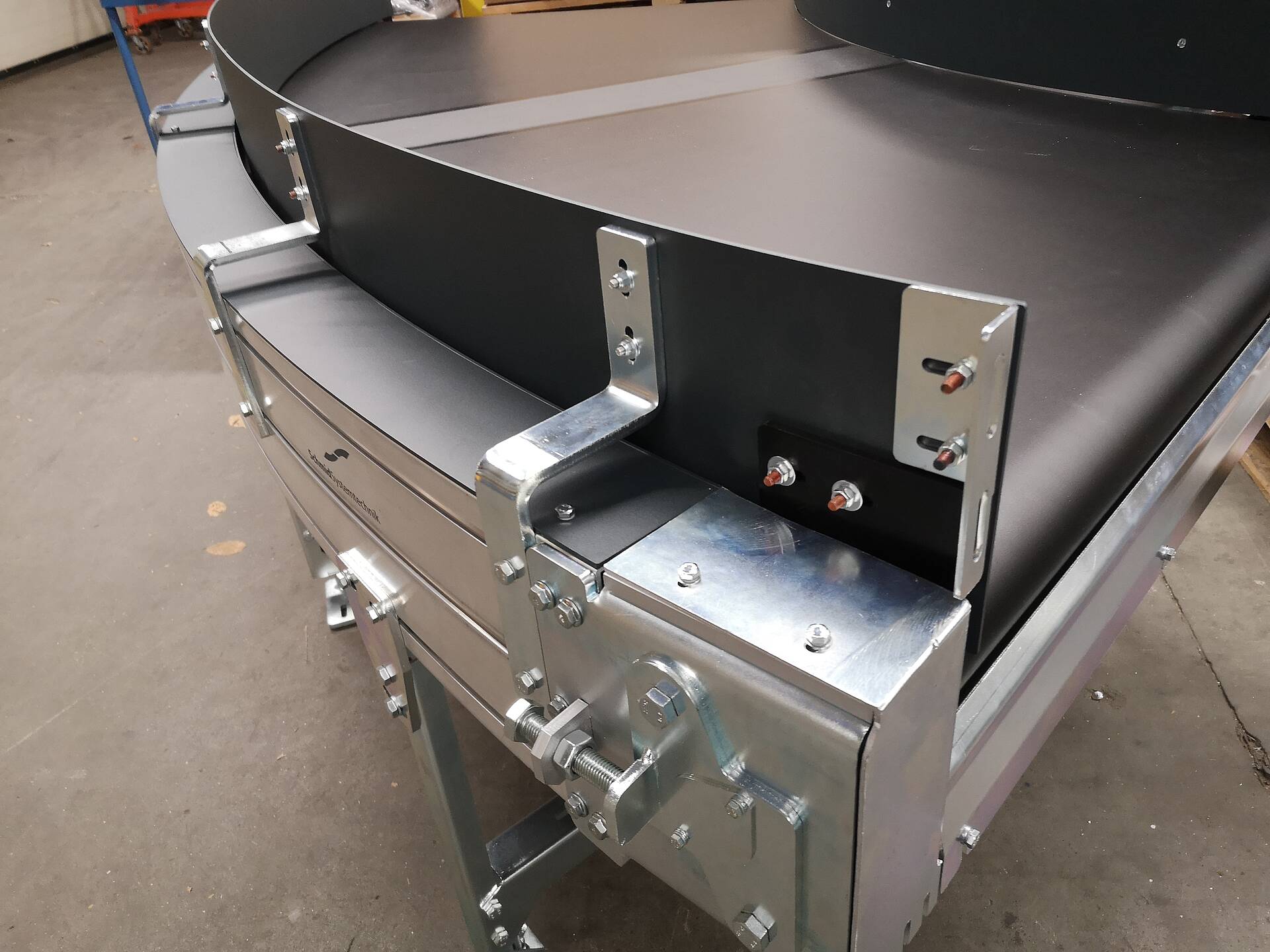

Thanks to a flexible modular set-up, Wipotec Systemtechnik can supply belt curves with radii and belt widths in a wide range. The belt curves essentially consist of stable, torsion-free aluminum profiles.

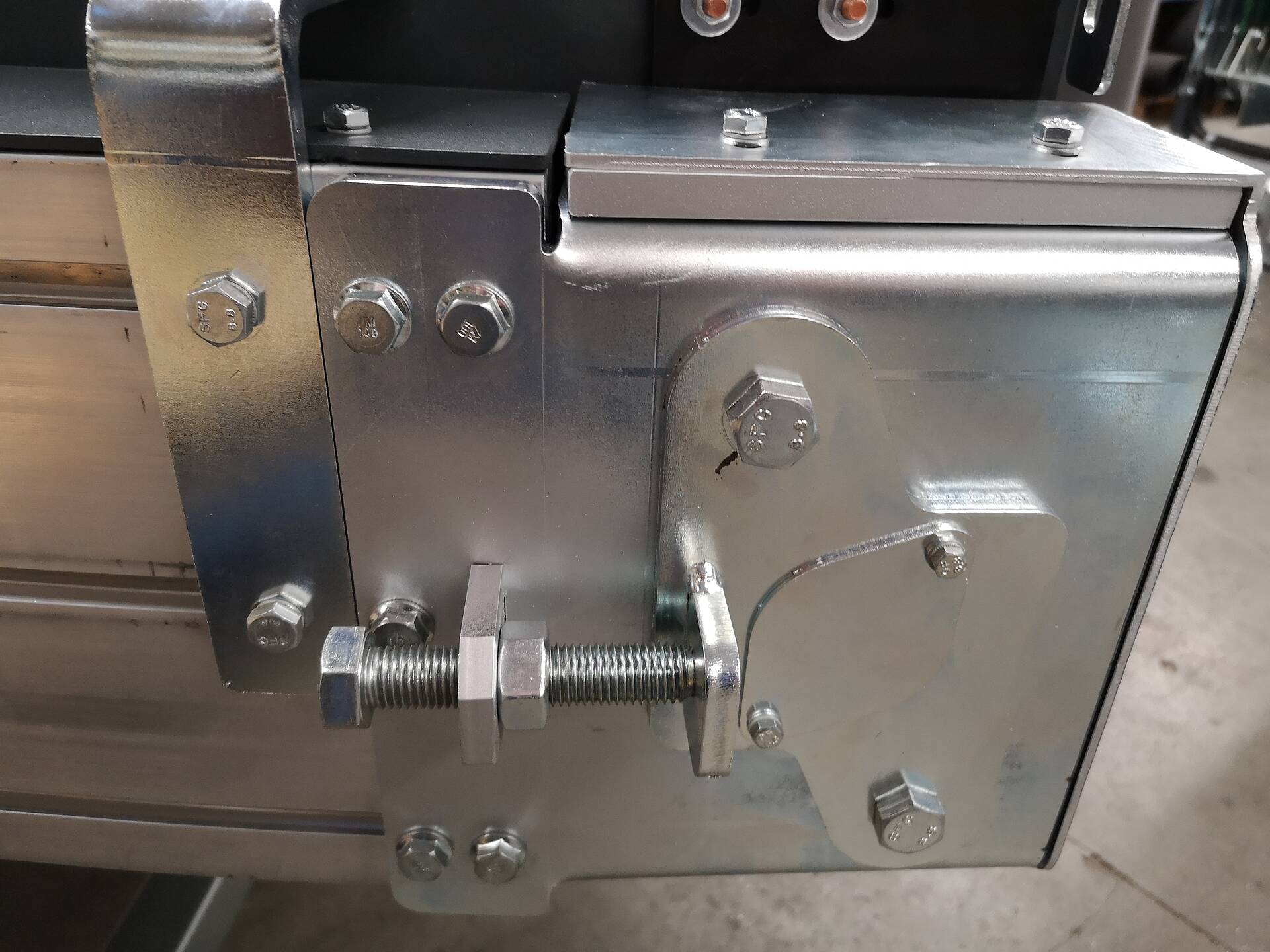

The combined drive and tensioning station guarantees quiet and low-noise operation.
Quick belt change

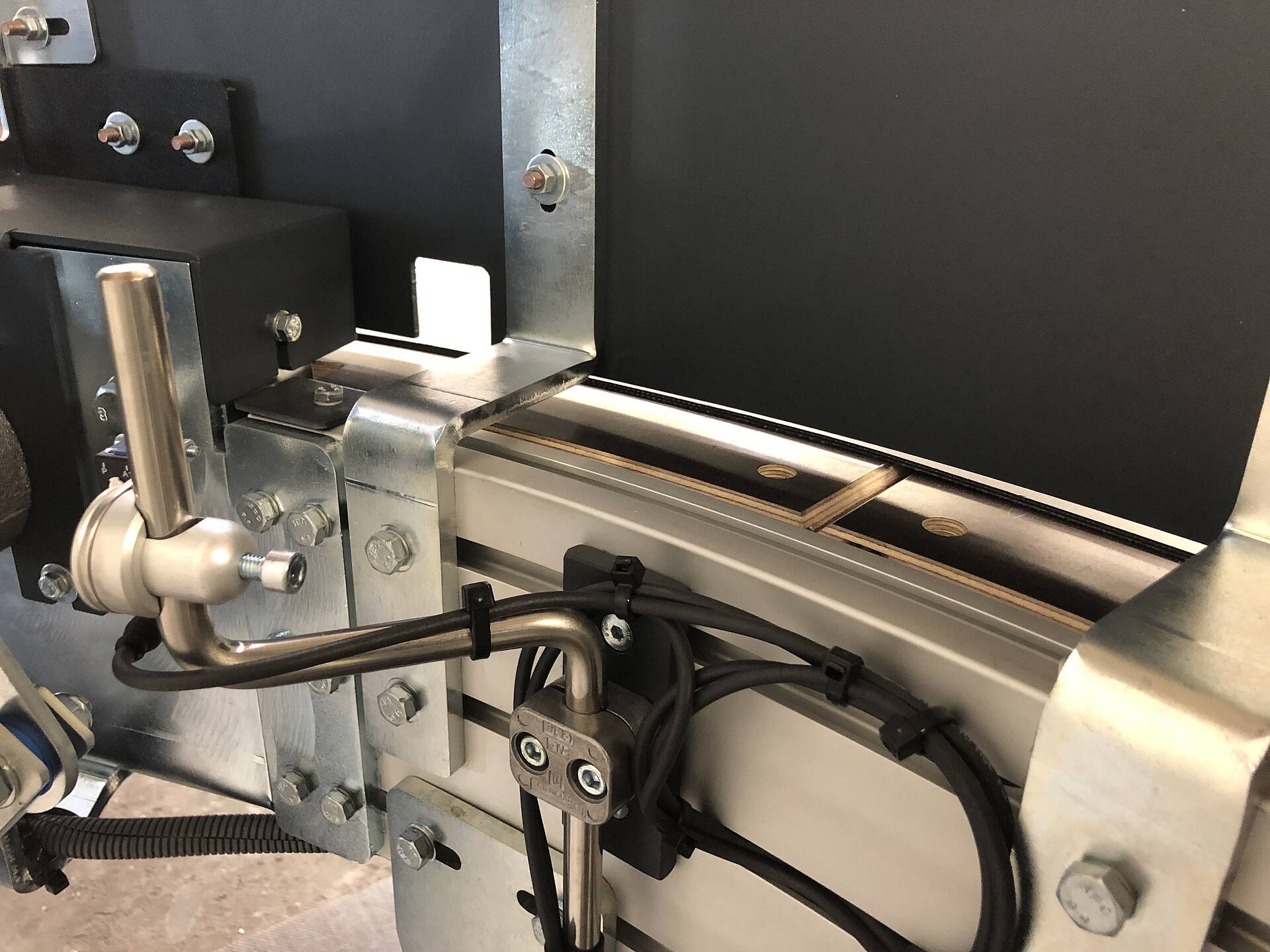

The modular design and our innovative quick-change system allow for quick and easy belt changes. Drives motors from well-known manufacturers are used as drives.
The drive position, i.e. whether it is located inside or outside of the drive pulley, depends on the installation situation.
Conveyor belt
As standard, an antistatic belt is installed, either with a smooth or structured carrying side and two fabric layers.
If needed, the belt curve can also be delivered with a food-safe or flame-retardant belt.
Options
- Customized dimensions, e.g. angles, radii or widths
- Side guards
- Adjustable conveying speed
- Reversing operation
- Sensors, e.g. for flow monitoring
- Without support or with ceiling suspension
- Flame-retardant belts
Technical Data
| Conveying angle | 30°, 45°, 60°, 90° and 180° |
| Nominal radius | 1,900 mm and 2,600 mm |
| Nominal width | 450 mm to 1,050 mm |
| Conveying height | min. 350 mm |
| Conveying speed | max. 1,2 m/s |
| Load | 50 kg/m |
| Accessories | Supports, covers |
