Flex conveyor
Driven scissor roller conveyors can be used flexibly in many application areas in a wide range of industries.
- Parcel and courier services
- Mail order
- Packaging industry

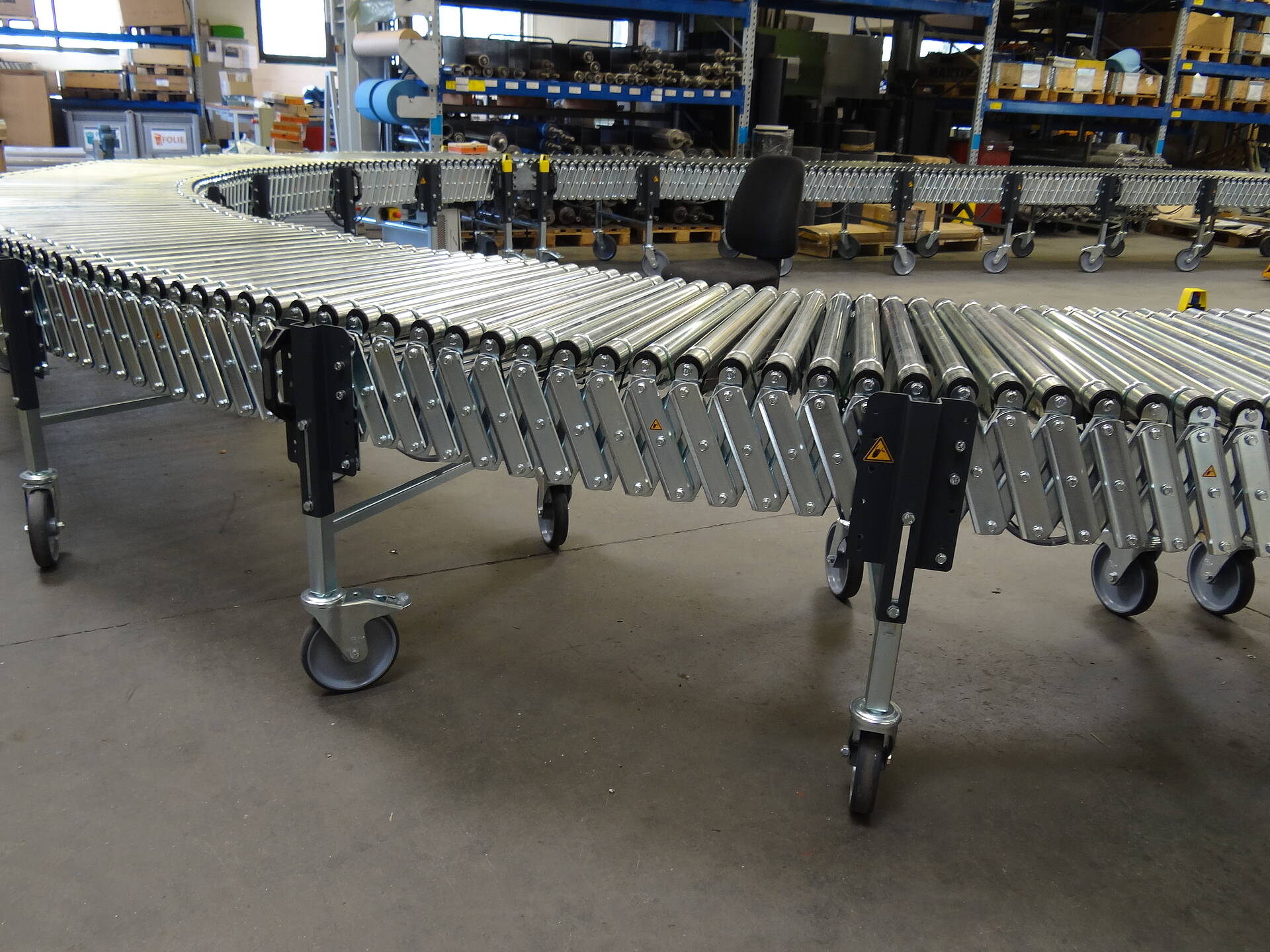

Flexible conveying lengths
The Wipotec scissor roller conveyors are available in freely definable lengths of up to 20 m. Individual tracks can be coupled in series mechanically as well as electrically, e.g. in order to extend the conveying length or to handle shorter tracks flexibly.
The scissor roller conveyor consists of segments of 1 m in length, each of which is equipped with a drive. The rollers are driven by round belts. Stable supports with mobile and lockable guide pulleys as well as handles mounted on both sides allow easy handling. Drive The scissor roller conveyor consists of segments of 1 m in length, each of which is equipped with a drive. The rollers are driven by round belts. Stable supports with mobile and lockable guide pulleys as well as handles mounted on both sides allow easy handling.
Drive

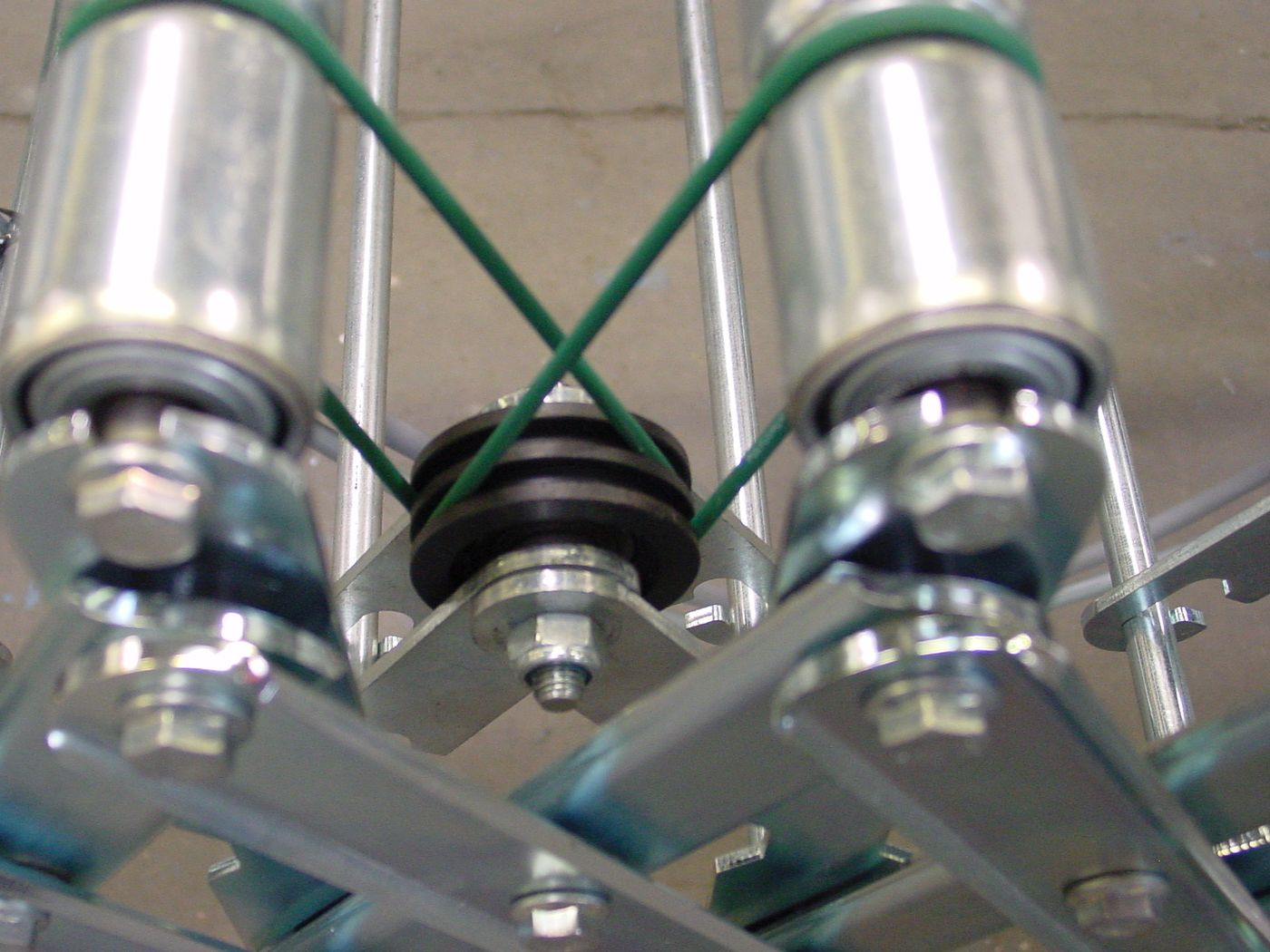

The scissor roller conveyor consists of segments of 1 m in length, each of which is equipped with a drive. The rollers are driven by round belts.
Stable supports with mobile and lockable guide pulleys as well as handles mounted on both sides allow easy handling.
Operating modes
The scissor roller conveyor is supplied with a mechanical rotary switch as an on/off switch, reversing operation for left/right running and adjustable conveying speed. It is also equipped with emergency stop buttons. Alternative operating modes are pass-through, automatic stop or cycling for conveying without jams.

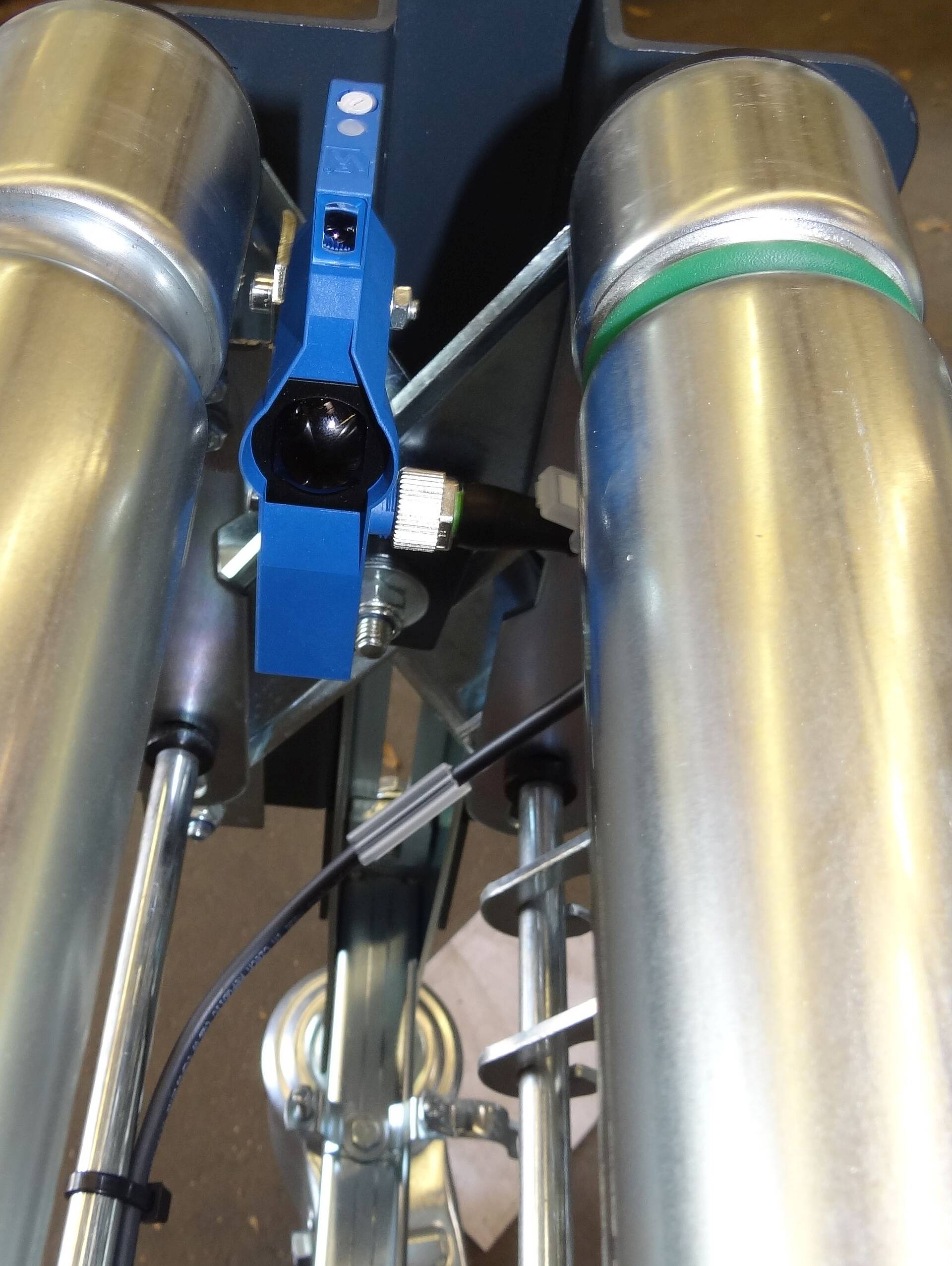

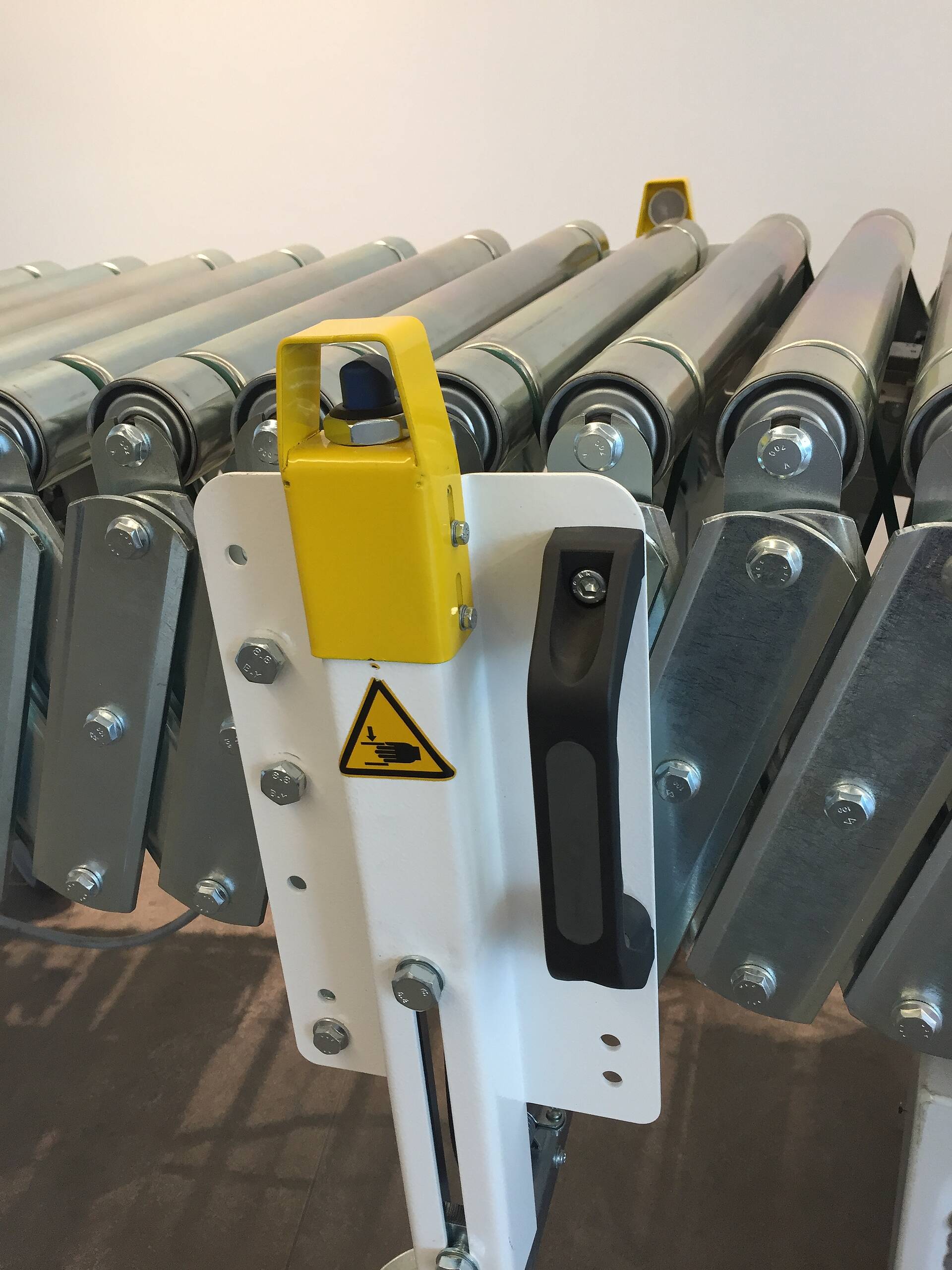

Optionally, our driven scissor roller conveyors can be supplied with mechanical limit stops or automatic limit switch-offs. If the track is connected to a conveyor system, a signal exchange can take place, e.g. by light barriers and emergency stop.
Options
- Various nominal widths
- Adjustable conveying speed
- 230 V or 400 V connection
- Various operating modes, e.g. automatic stop or cycling for conveying without jams
- Additional control panel at the end of the track
- Signal exchange with downstream conveying equipment
- Couplings and floor fixings
Technical Data
| Conveyor lengths | in 1 m segments |
| Roller length | 600, 800 or 1,000 mm |
| Rollers | ∅ 50 mm, steel, galvanized |
| Conveying speed | 0.5 m/s |
| Bracing | mobile and lockable by steering castors with parking brake |
