GroundLoader
In cases where no gates with loading ramps are available, e.g. due to structural circumstances or high workload, trucks and swap bodies must be loaded and unloaded from ground level./h.

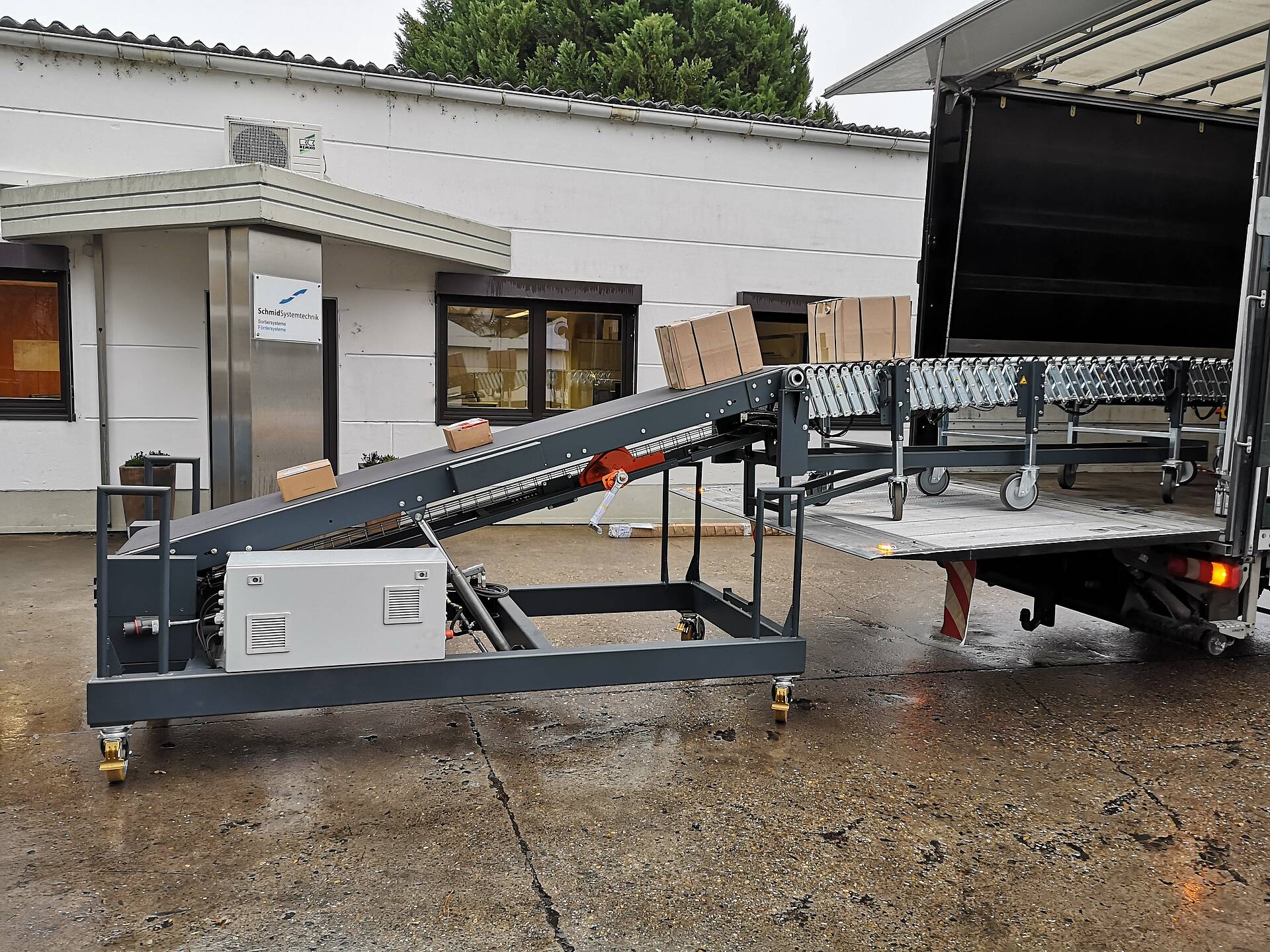

The GroundLoader bridges the offset from ground level to the height of the truck or swap body.
Set-up

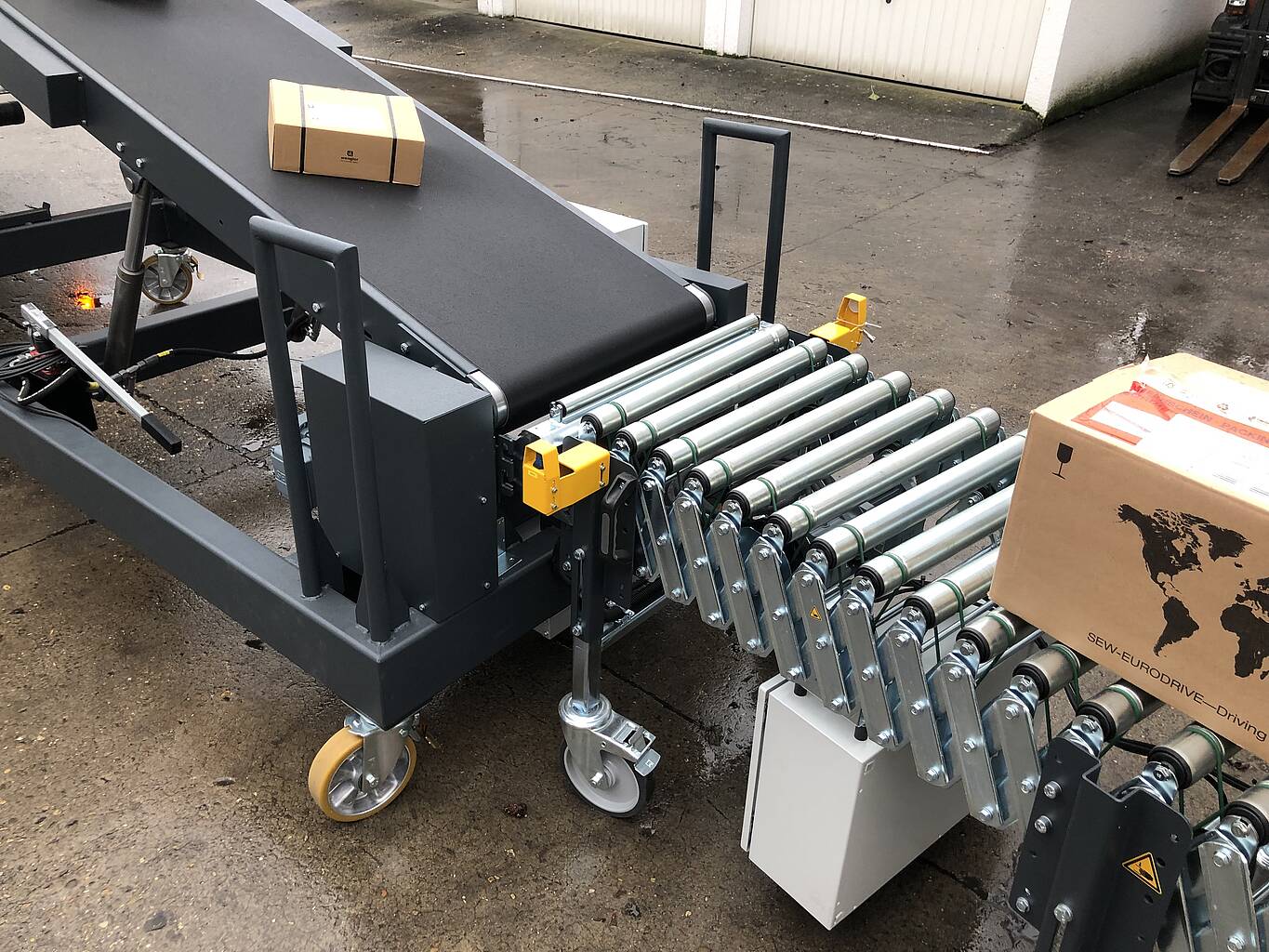

The GroundLoader consists of a movable frame on which a belt conveyor and a powered expandable roller conveyor are mounted on a cantilever.

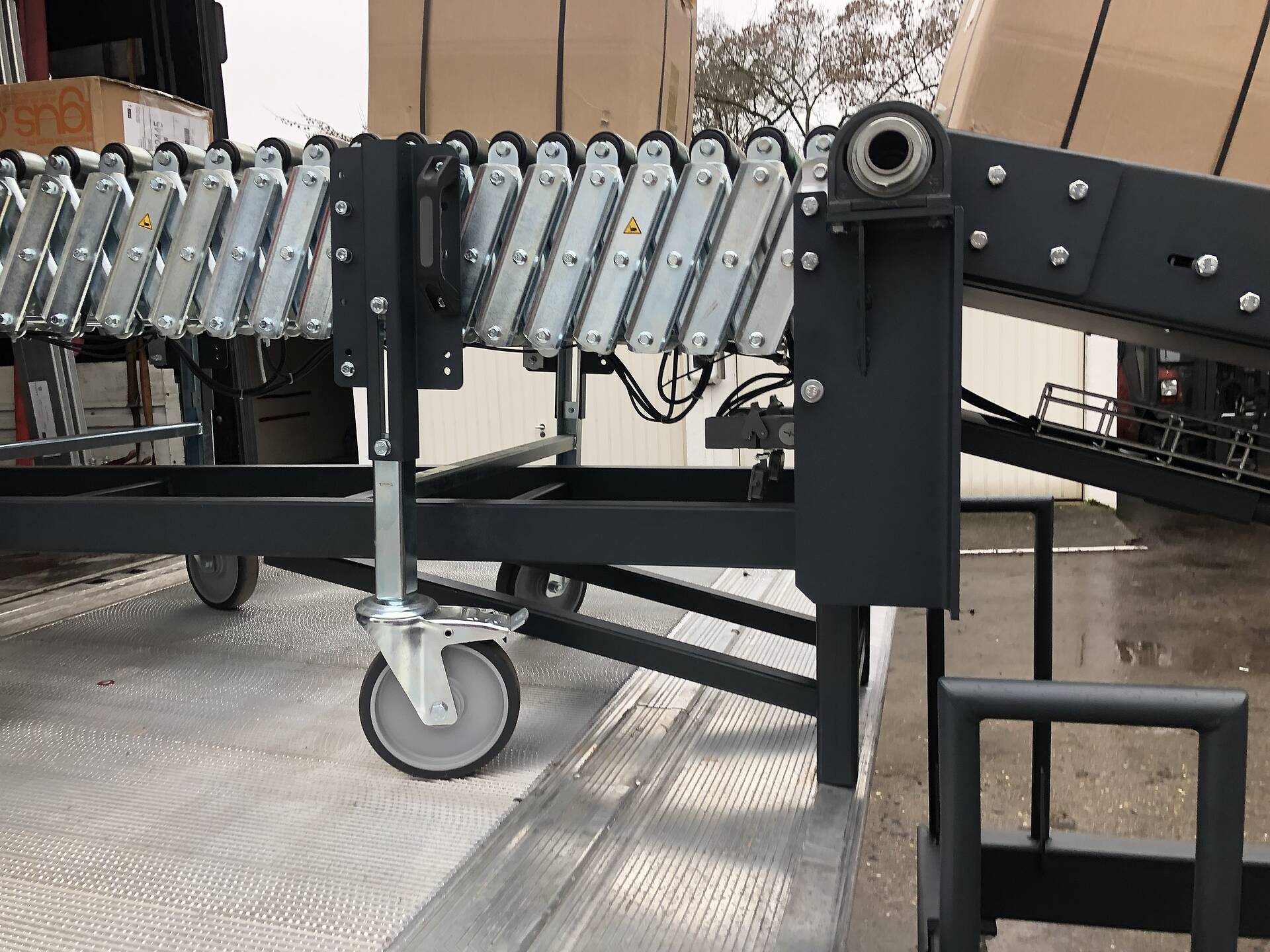

The belt conveyor can be hydraulically adjusted to the height of the truck or swap body. The powered expandable roller conveyor is extended to the appropriate loading or unloading position.
Options
- Expandable roller conveyor also available as gravity conveyor
- Adjustable conveying speed
- Mechanical stop
- Reversable conveying direction
- Sensor technology, e.g. for automatic stop
- Coupling to existing conveyor equipment
- Hydraulic motor-driven
Technical Data
| Belt width | 600 mm |
| Conveying height | 800 mm–2,000 mm |
| Conveying speed | 0.5 m/s |
| Load capacity | 50 kg/m |
| Accessories | Hydraulic adjustability of height |
