Check-in conveyor
Wipotec Systemtechnik check-in conveyors and collection conveyors are designed and fabricated to fully comply with customers requirements in respect of design, functionality, life cycle, and space constrains.
Configurations
Single or Double Check-in

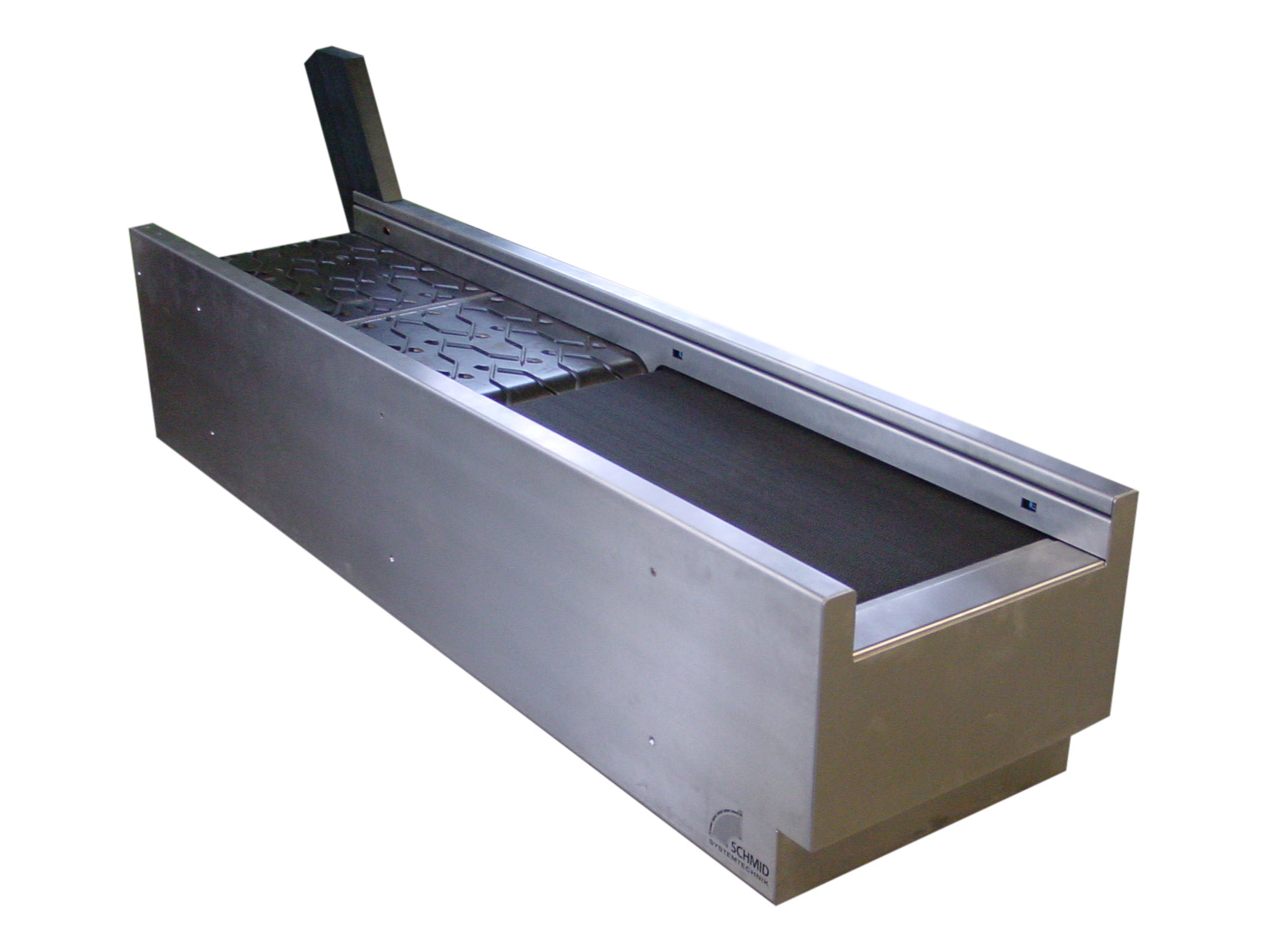

Check-in with one, two or three stages, i.e. weighing, labeling and dispatch conveyor

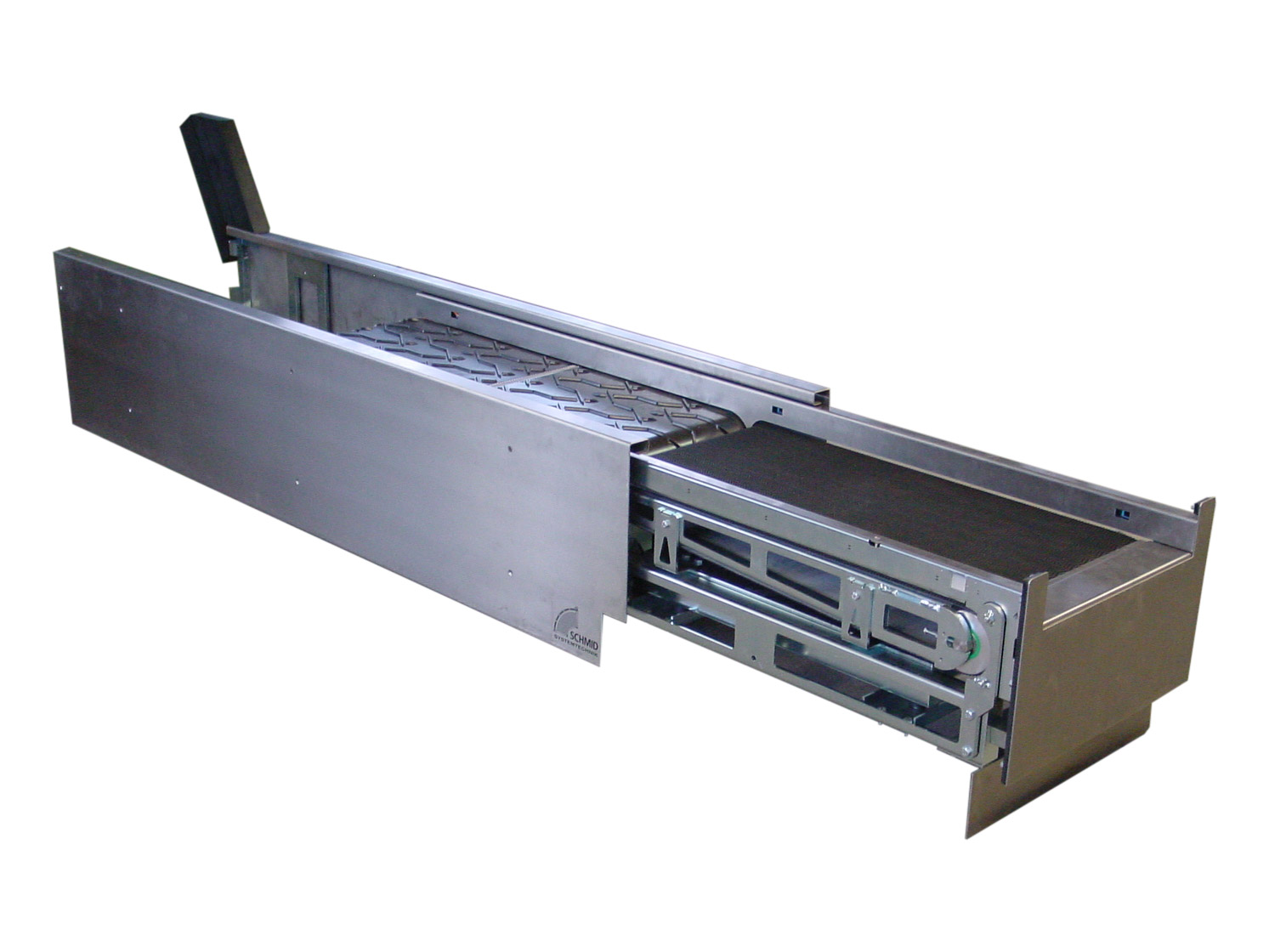

Optional pull-out feature for easy and safe maintenance
Reference airports

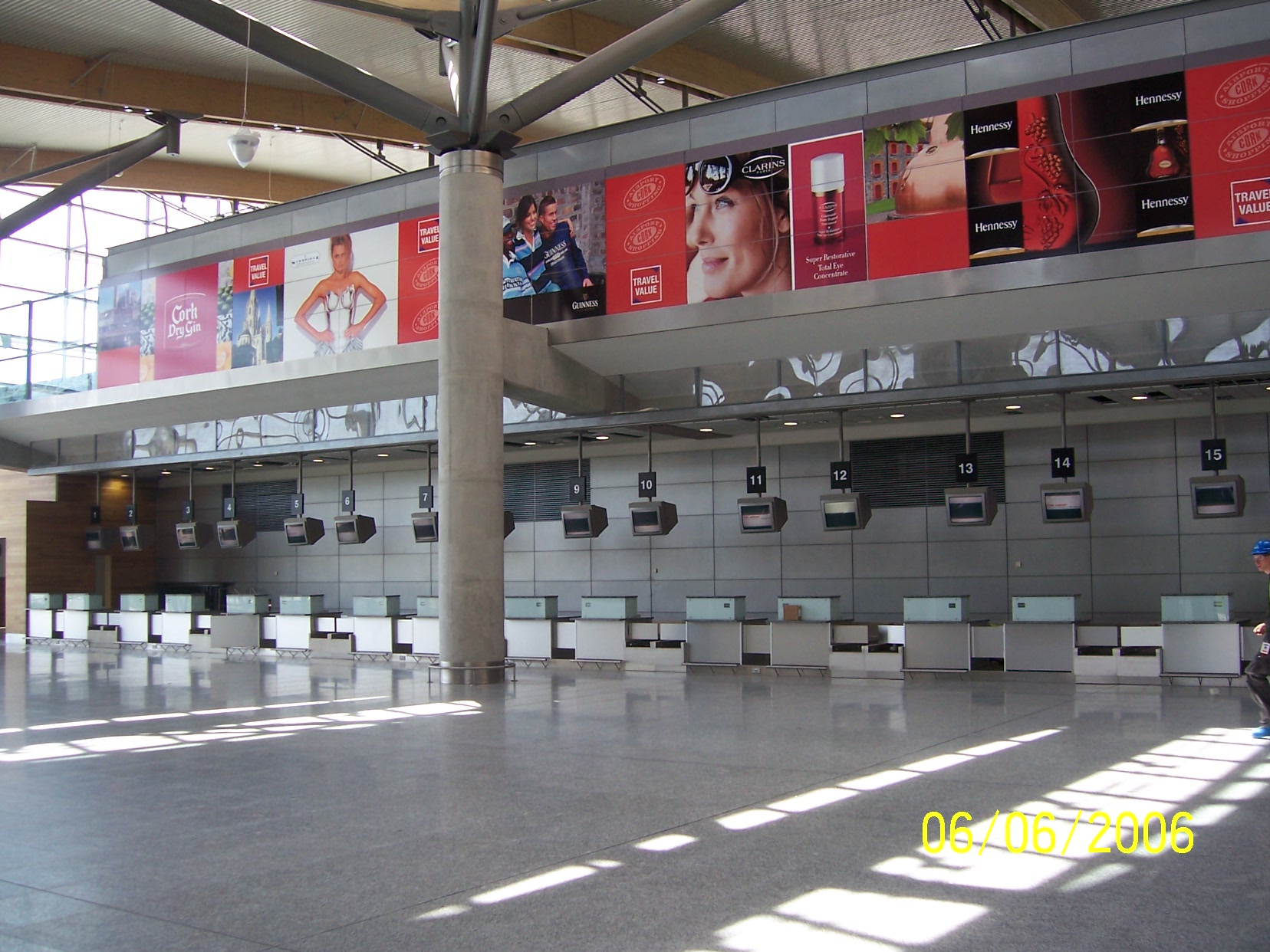

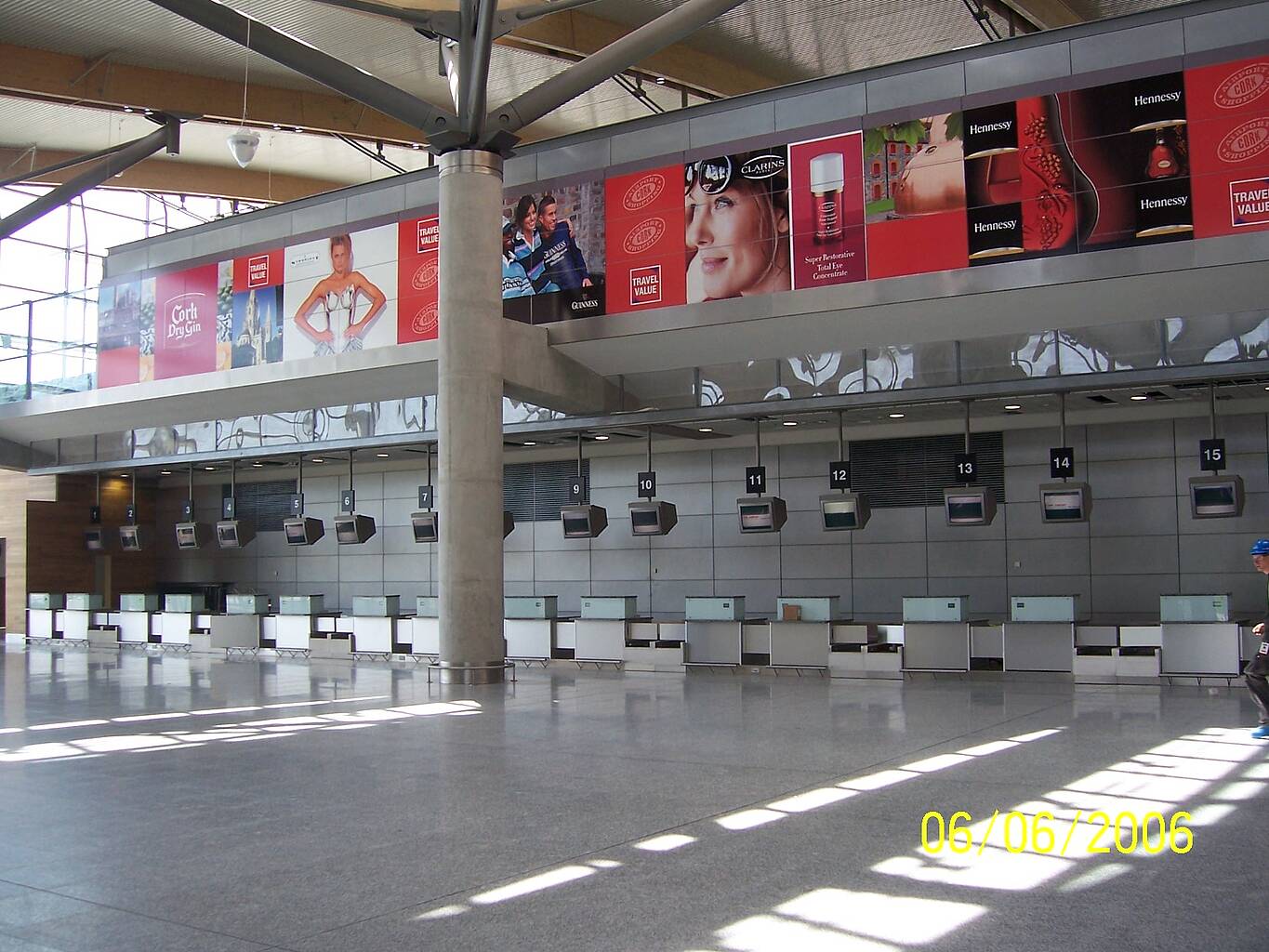

- Cork
- Dubai
- Frankfurt
- Sydney

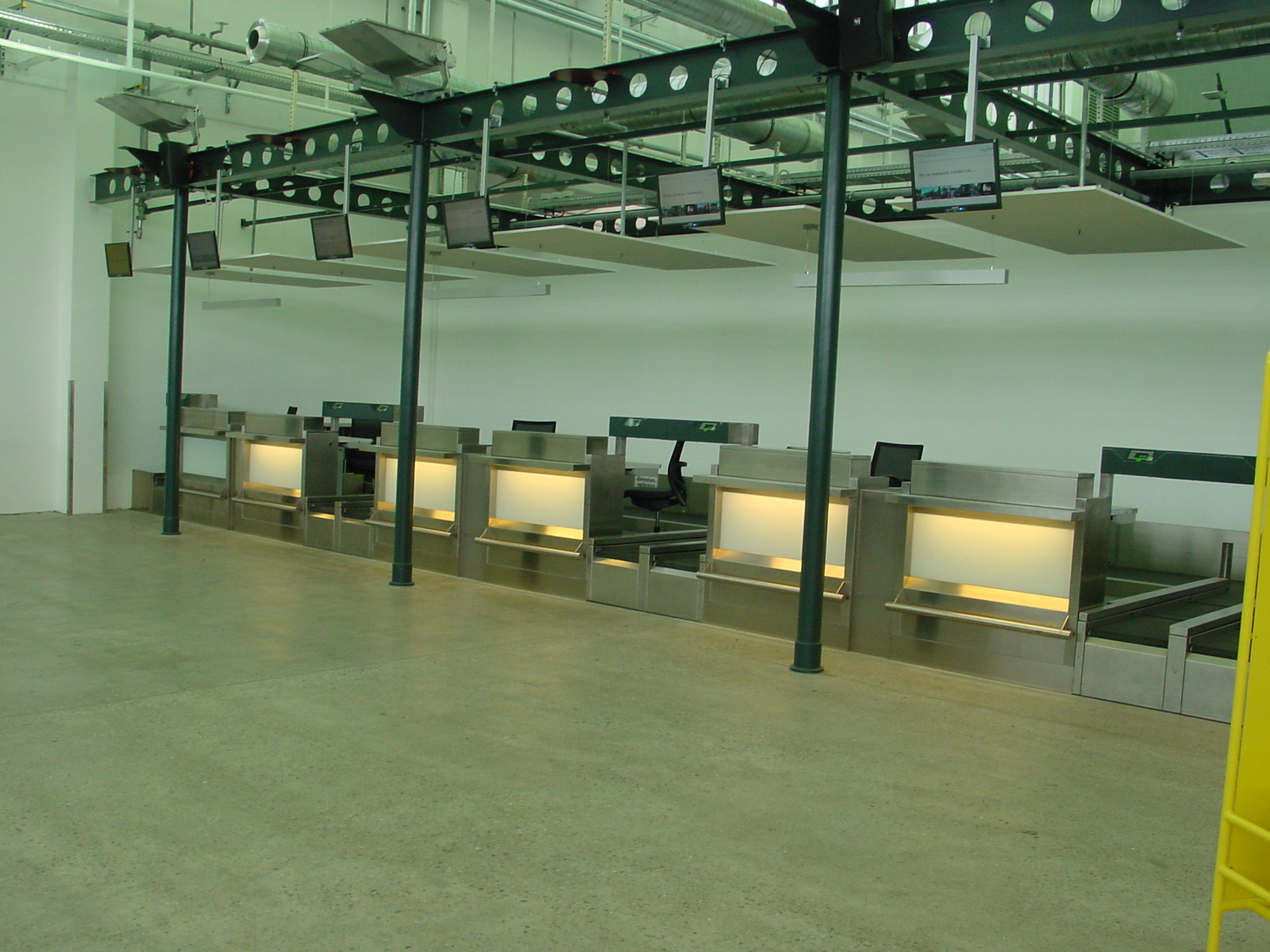

- Memmingen
- Bern

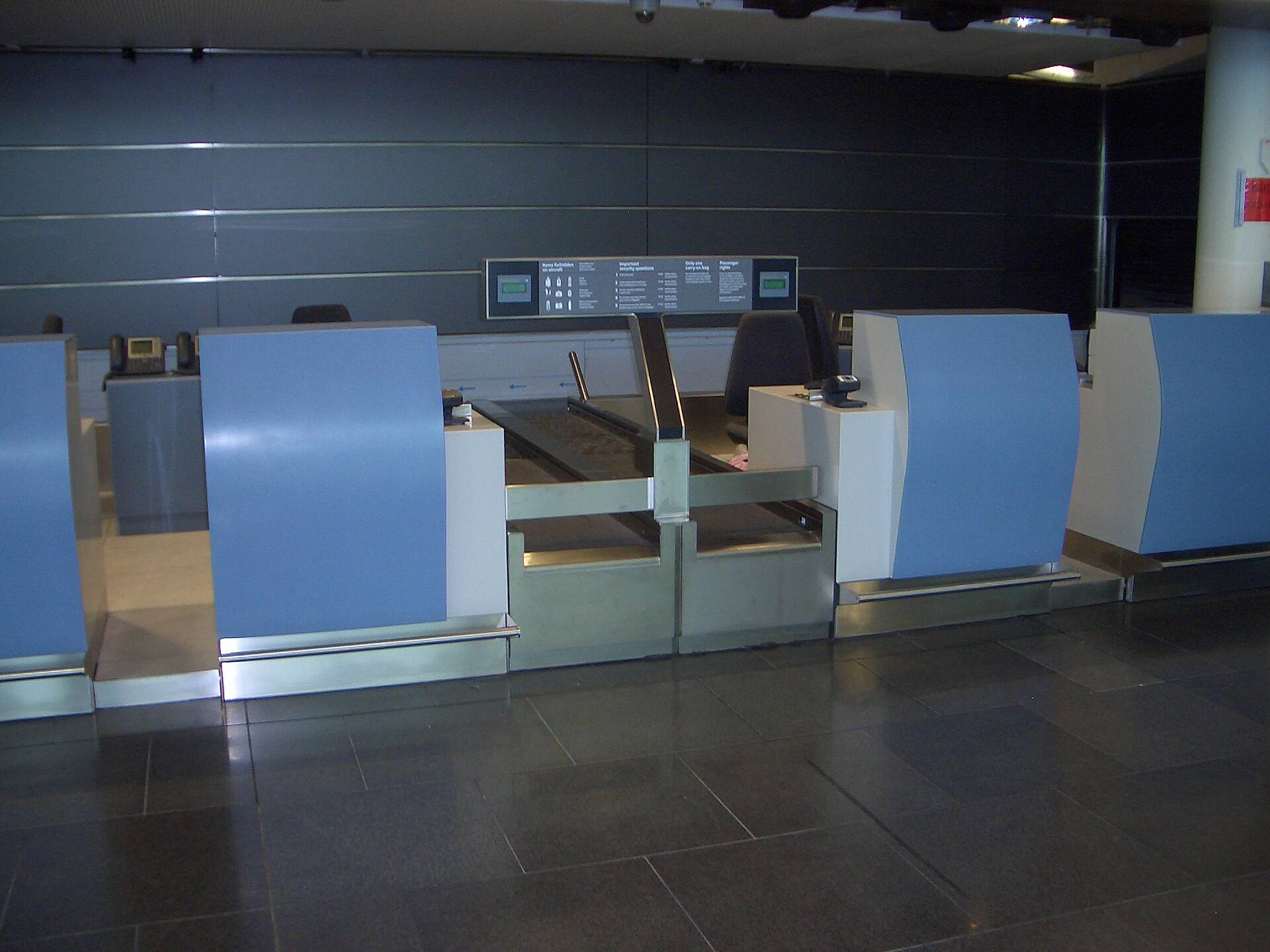

- Dublin
- Abu Dhabi
- Prague
- Düsseldorf
- Groningen
- Dresden
- Manchester
- Sofia
- Sylt
Options
- One, two, or three stages, i.e. weighing, labeling and dispatch conveyor

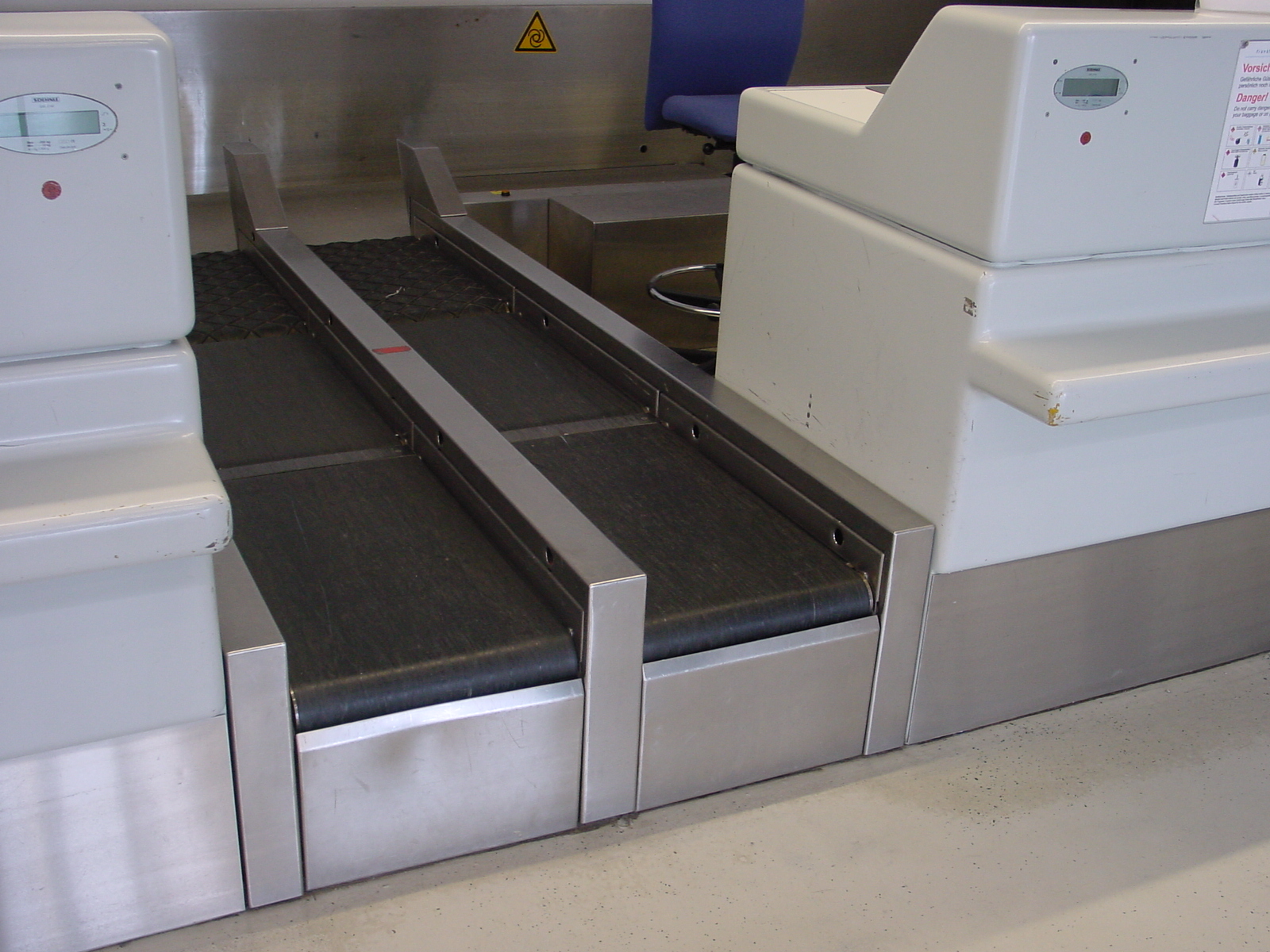

- Single or double check-in systems
- Pull-out feature
- Stainless Steel 1.4301
- Reversible
- Tilting device in stainless steel, polyamide or as roller
- Customer-defined polished surface
- Various types of weighing scales and displays
- Choice of belt types and widths
- Pre-wired for plug-and-play commissioning
- Child-proof barrier
Technical Data
| Length | customizable from 800 mm up to 1,800 mm |
| Conveyor height | 395 mm |
| Drop-off height | 395 mm or lower depending on whether embedded in floor or without pull-out feature |
| Installation mode | fixed |
| Belt width | customizable |
| Overall width | customizable |
| Max. load | static 150 kg/m, dynamic 50 kg/m |
| Conveying speed | 0,5 m/s, customizable |
| Photoelectric sensors | at each conveyor |
| Drives | drum motors |
| Belts | flame-retardant |
| Material | stainless steel 1.4016 |
| Noise level | <65 dB(A) |
